RESPONSE RADIANCE
3 in 1 BATHROOM HEATER, EXHAUST FAN & LIGHT
*Conditions apply. 1 year warranty on the Tungsten-Halogen heat lamps.
For details visit: fantechtrade.com.au/warranty
**Complies with requirements of NCC 2022 Vol 1 Part F8D4 and ABCB Housing Provision Part 10.8.2, when correctly installed. 5 gang wall switch not included.

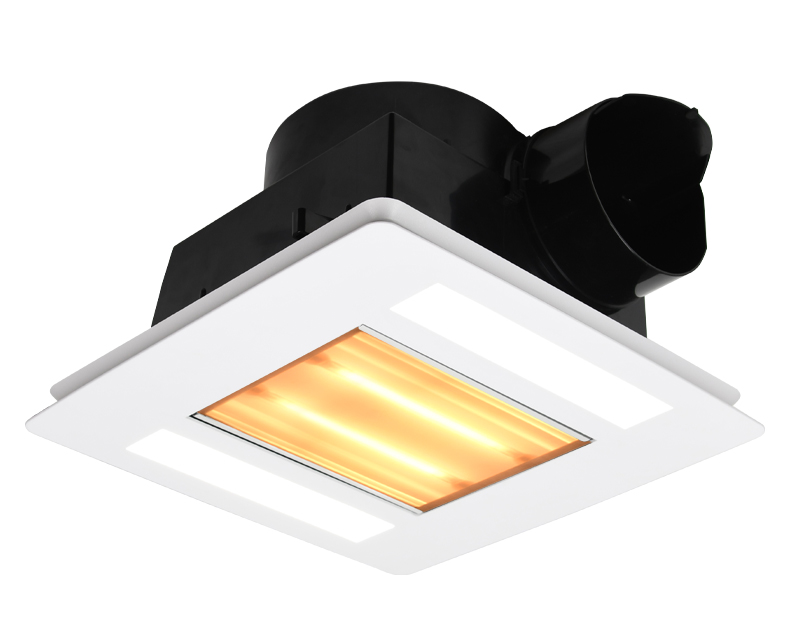

Response Radiance
The Response Radiance with heater, exhaust fan and light sets a new benchmark for 3 in 1 bathroom units. Its modern and sleek design will seamlessly complement any bathroom or ensuite style. It has been engineered to efficiently exhaust steam and odours, deliver instant heat, and provide effective lighting within the room. Its unique design, lightweight construction and full function wireless wall controller, make the Response Radiance super easy to install into established or new homes.
Features
Designed and engineered for fast and efficient installation.
Modern contemporary design.

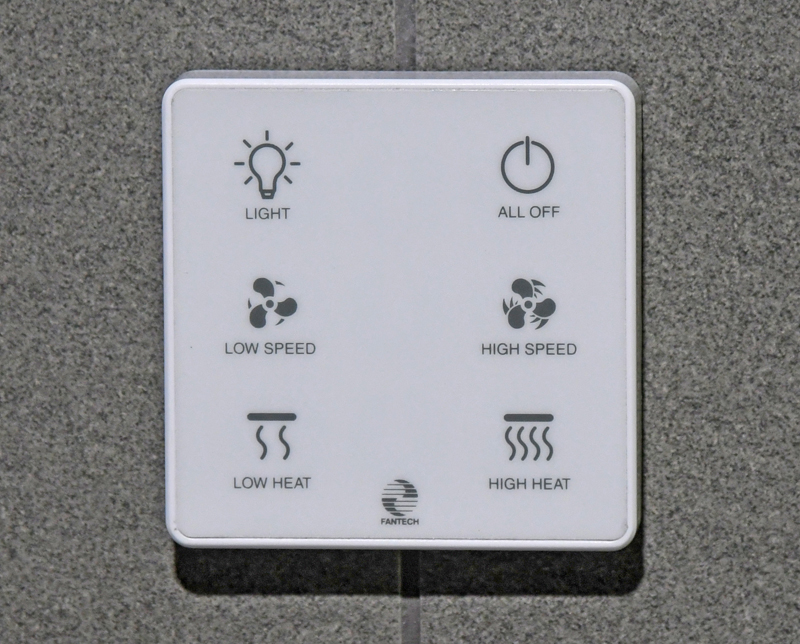

Wireless wall controller activates all operating functions.

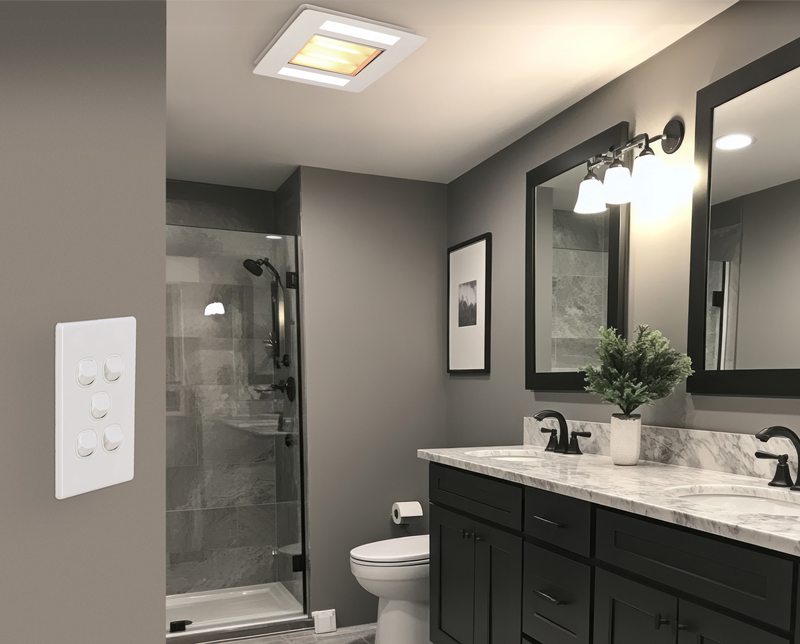

Model that can be hard wired to a wall switch also available. This model includes a 10 minute run-on timer which makes it compliant with NCC 2022.**

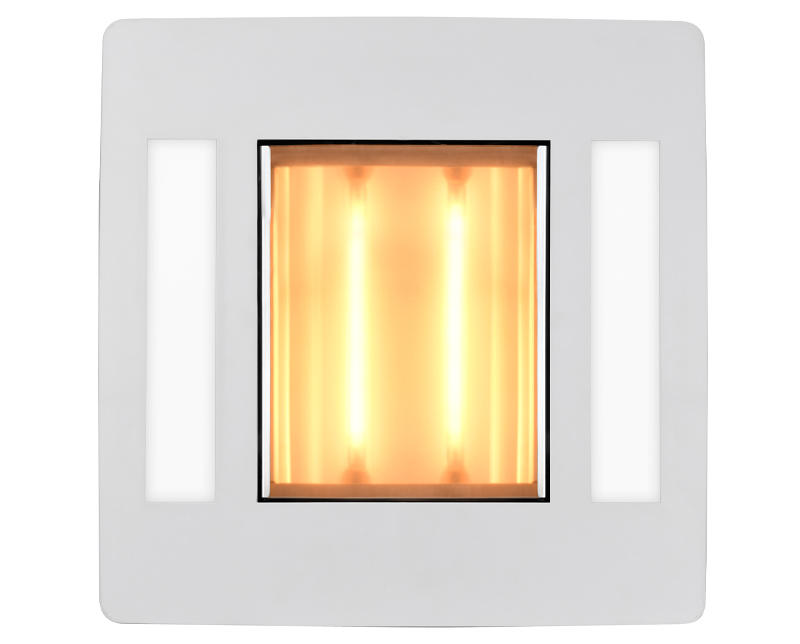

Tungsten-Halogen heat lamps provide instant heating.
LED lights can be set to warm white, cool white or daylight to match other installed lights.
Equipped with non-return backdraft damper.
Made from ABS for a tough but light-weight design.
Includes 3-pin plug and lead for easy installation.
Grille can be easily removed for cleaning.
Patented thermal management technology.
Response Radiance features
Response Radiance review by @demannelectrical
HOW TO INSTALL: Response Radiance
Fan Dimensions
Dimensions in mm
Controller Dimensions
Product Specifications
| Model | RESP3-1WH | RESP3IN1WH | |
|---|---|---|---|
| Voltage | 230-240V | 230-240V | |
| Hertz | 50 | 50 | |
| Fan Power | 40W | 40W | |
| Light Power | 24W | 24W | |
| Heater Power | 2 x 500W | 2 x 500W | |
| Noise Level dBA @ 3m | High Speed | 37 | 37 |
| Noise Level dBA @ 3m | Low Speed | 27 | 27 |
| Air Flow L/sec** | High Speed | 87 | 87 |
| Air Flow L/sec** | Low Speed | 30 | 30 |
| Air Flow m3/hr** | High Speed | 313 | 313 |
| Air Flow m3/hr** | Low Speed | 108 | 108 |
| Light Lumens | 1560Lm† | 1560Lm† | |
| Light Colour Temperature | 3000K/4200K/6000K | 3000K/4200K/6000K | |
| IP Rating | IPX4 | IPX4 | |
| Control | Wireless (Rf) Wall Mounted Controller (Included) | Hard wired 5 gang switch (not included) and/or wireless (RF) Wall Mounted Controller (Included) | |
| Run-on Timer | N/A | 10 minute | |
** Air flow is measured free air with grille installed. † On 4200K light colour temperature.
Replacement Parts
| Model No. | Description |
|---|---|
| RESP3HEATLAMP | Tungsten-Hologen Heat Lamps |
| RESP3GLASS | Glass |
| RESP3REMOTE | Wireless Wall Mounted Controller |
| RESP3-1grille | Grille with Led Lights |

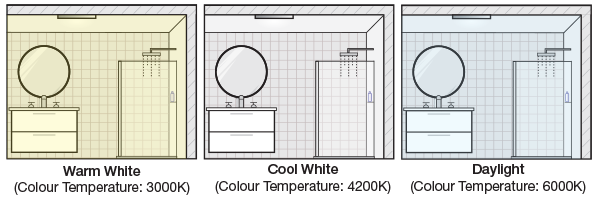

LED lights can be set to warm white, cool white or daylight
Colour indicated in drawing above is for illustrative purposes only. Actual colour may vary.
Engineered to compliment room shape
Grille can be rotated 90 degrees so the alignment of LED lights and heat lamps can better suit shape of the room. This enables spigot and ducting to remain parallel to ceiling joists and avoid kinks or sharp bends in duct.
Available at leading electrical wholesalers you can trust
