RAPID RESPONSE
GRILLES WITH AND
WITHOUT LED LIGHT
*Applies only when purchased from a wholesaler outlet.
Rapid Response Grilles

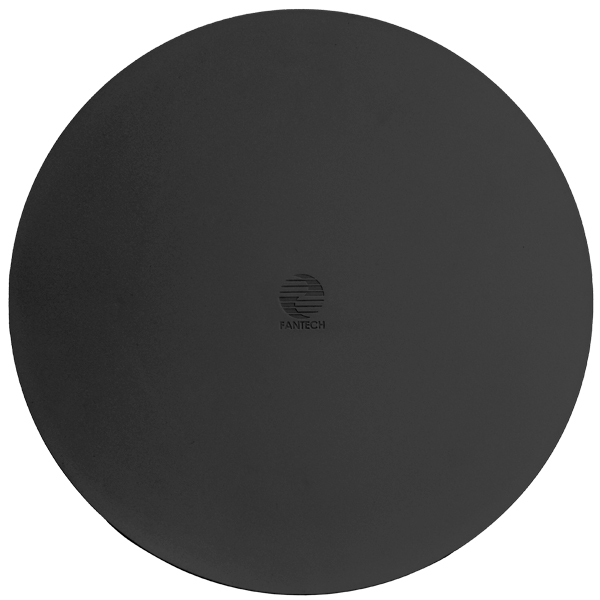

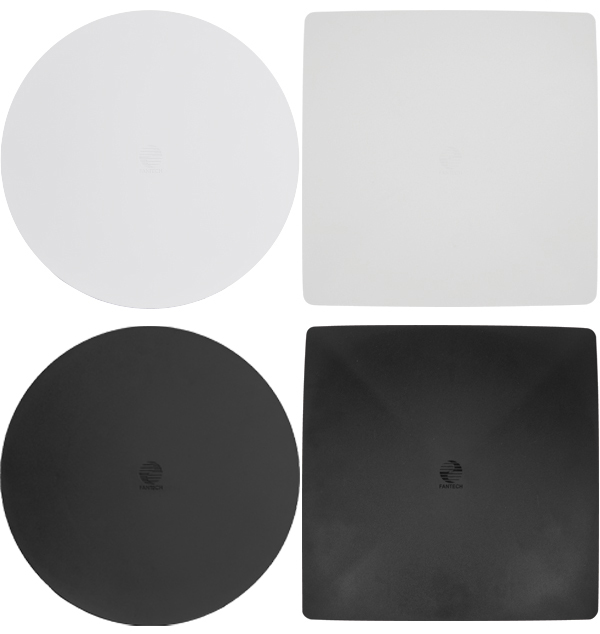

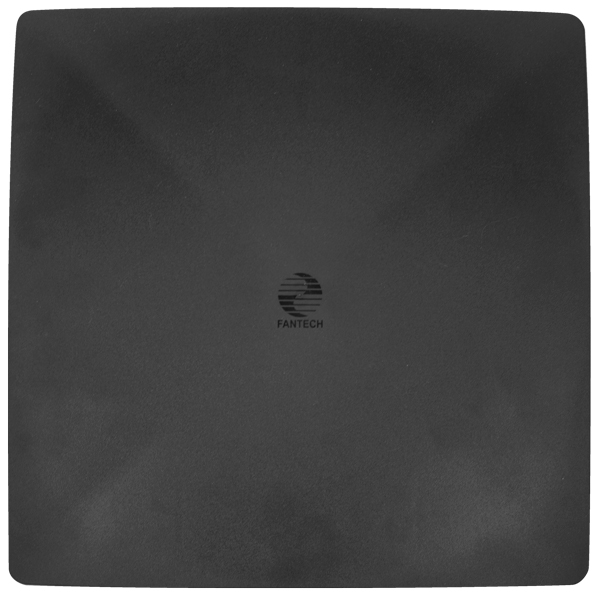

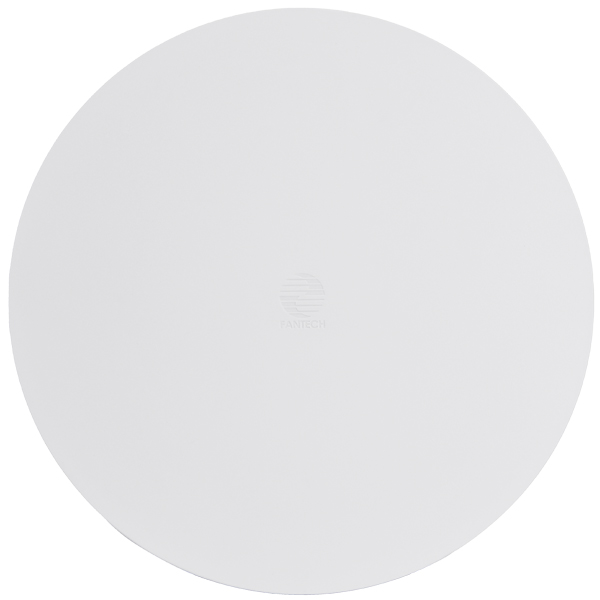

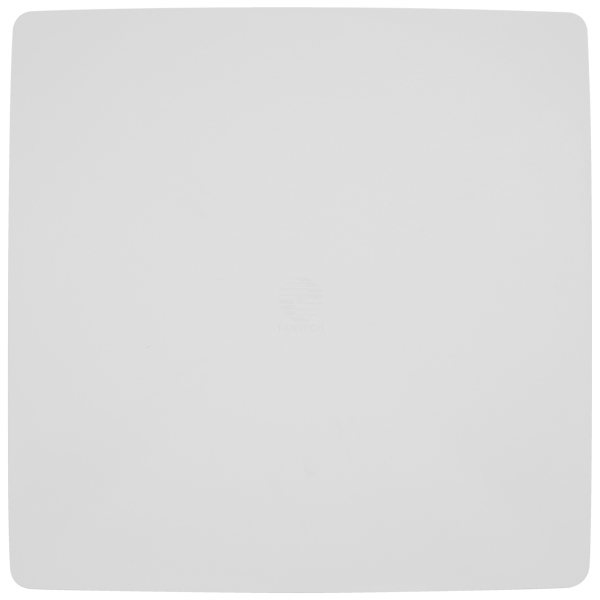

The stylish and modern Rapid Response grille is available in round and square designs with white or black finish (black finish only available with 10” model).
Features
Innovative design allows grilles to be easily removed for cleaning.
Available in 2 sizes to suit 8” and 10” Rapid Response header box fan.
Quick and easy to install to fan body.
Can be retrofitted to a previously installed Rapid Response fan.
Compatible Rapid Response Fans
*Applies only when purchased from a wholesaler outlet.

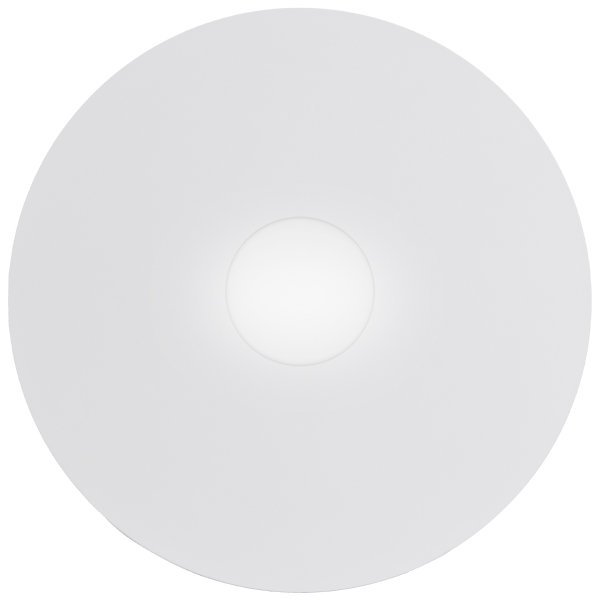

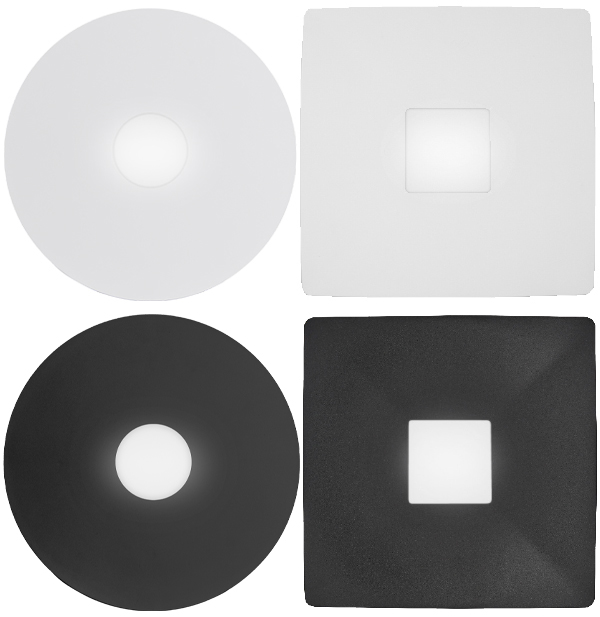

Rapid Response Grilles with LED

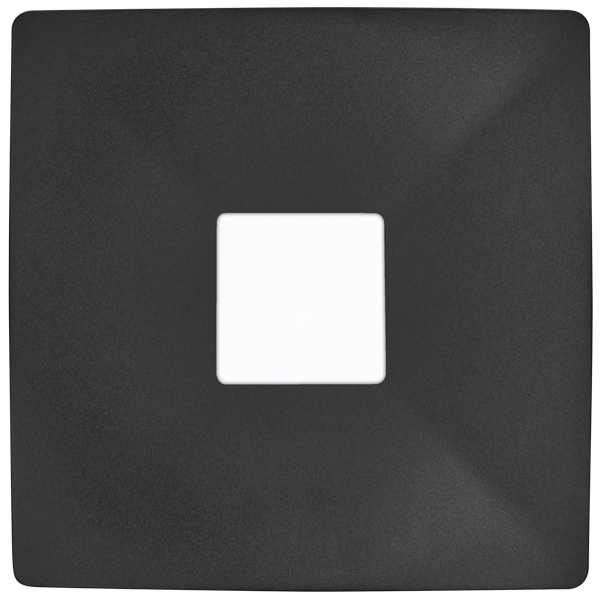

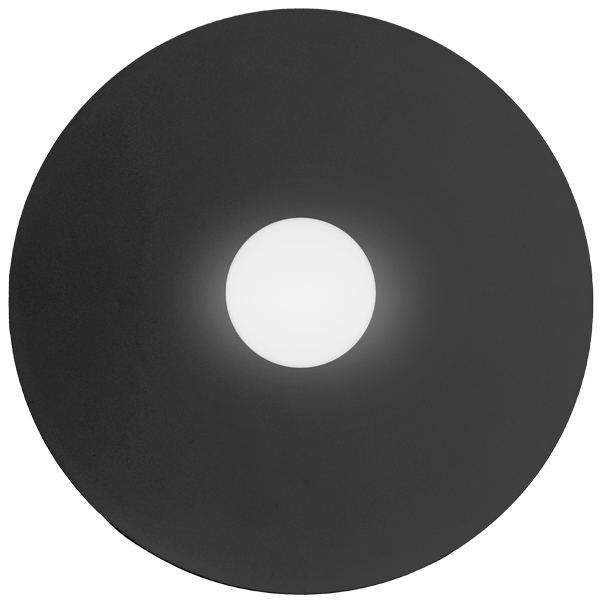

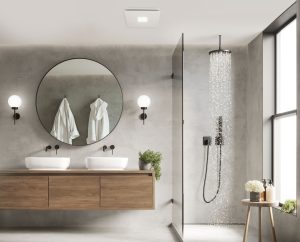

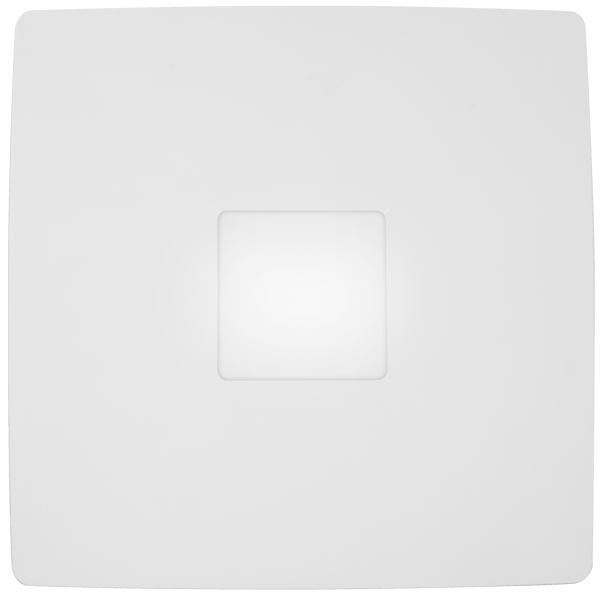

The stylish and modern Rapid Response Grille with LED light will brighten up any bathroom, ensuite or toilet.
LED light can be set to cool, neutral or warm white by changing the Tri-Switch’s position. The Rapid Response grilles are quick to install and can be easily removed for cleaning.
Features
Available in Round and Square models.
Available in 2 sizes to suit 8” and 10” Rapid Response header box fan models.
Stylish, contemporary design.
LED light & Rapid Response Fan can be controlled separately.
Quick & easy to install.
Can be retrofitted to a previously installed Rapid Response Fan.
LED light can be set to cool, neutral or warm white to match other installed lights.
Complies to: AS/NZS 60598.2.2:2001 and AS/NZS 60598.1:2013 Certificate No.: SAA152082.
Compatible Rapid Response Fans

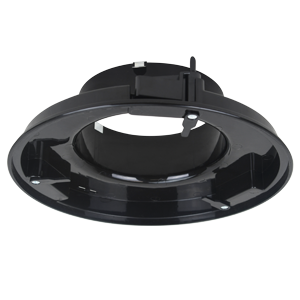

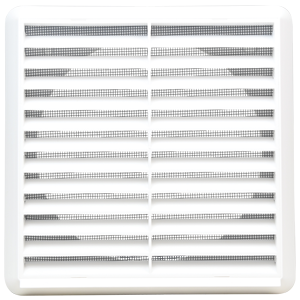

Ceiling Grille with Clip-in Spigot
The Response Ceiling Grille with clip-in spigot has been designed for ducted systems using an in-line fan and external grille. It can be positioned for horizontal or vertical duct connection.
Features
Can be retrofitted into a standard 10” round fan cut out.
Unique ‘push-out’ ceiling clamps make installation easy.
Clip-in spigot makes installation and duct connection easier.
Grille can be easily removed for cleaning and rotated to align with the walls.
Oval spigot designed to fit 150mm duct.
Spigot can be mounted horizontally or vertically.
Model No. RCG150SQWH
Dimensions

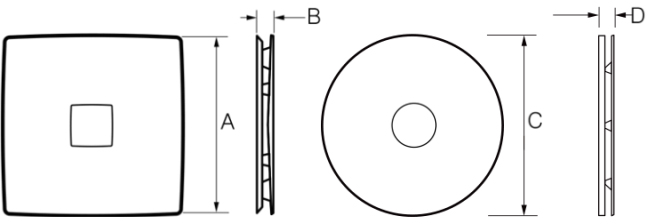

| Model No. | Description | A□ | B | CØ | D |
|---|---|---|---|---|---|
| RESPG8-SQWH | 8" Square Grille White Finish | 300 | 28 | - | - |
| RESPG8-SQBK | 8" Square Grille Black Finish | 300 | 28 | - | - |
| RESPG8-SQWH-TRILED | 8" Square Grille White Finish with Tri-Switch LED | 300 | 28 | - | - |
| RESPG8-RNWH | 8" Round Grille White Finish | - | - | 294 | 19 |
| RESPG8-RNBK | 8" Round Grille Black Finish | - | - | 294 | 19 |
| RESPG8-RNWH-TRILED | 8” Round Grille White Finish with Tri-Switch LED | - | - | 294 | 19 |
| RESPG150SQWH | 10" Square Grille White Finish | 353 | 30 | - | - |
| RESPG150SQBK | 10" Square Grille Black Finish | 353 | 30 | - | - |
| RESPG150SQWH-TRILED | 10" Square Grille White Finish with Tri-Switch LED | 353 | 30 | - | - |
| RESPG150RNBK | 10" Round Grille Black Finish | - | - | 332 | 24 |
| RESPG150RNWH | 10" Round Grille White Finish | - | - | 332 | 24 |
| RESPG150RNWH-TRILED | 10” Round Grille White Finish with Tri-Switch LED | - | - | 332 | 24 |
Rapid Response Ceiling Grille with Clip-in Spigot
Technical Data
LED Grilles
| Model | Grille | Lumens (LM) | Input Power (W) | Colour Temp (K) | Beam Angle |
|---|---|---|---|---|---|
| RESPG8-SQWH-TRILED | Square | 1000 | 12 | 3000/4200/6000 | 180° |
| RESPG8-RNWH-TRILED | Round | 800 | 9 | 3000/4200/6000 | 180° |
| RESPG150SQWH-TRILED | Square | 1000 | 12 | 3000/4200/6000 | 180° |
| RESPG150RNWH-TRILED | Round | 800 | 9 | 3000/4200/6000 | 180° |
Installation
Square Grilles
Round Grilles
1. Push grille onto fan body until the clips click into place.
2. Rotate grille to the desired position.
1. Bring together the ends of the metal spring clips.
3. Repeat Steps 1 and 2 for second metal spring clip
2. Feed metal spring clips through the small slots on the fan body
