RAPID RESPONSE
GRILLE TO DUCT CONNECTOR
Grille to Duct Connector
The easy to install Rapid Response grille to duct connectors are designed to fit our modern 8” or 10” Rapid Response grilles and flexible duct. The grille to duct connectors are suitable for ducted systems that use an in-line, roof, or external wall mounted fan. Grilles are quick to remove, making them easy to clean.
Features
High strength swing clips make installation easy.
Can be retrofitted into a standard 8” (255mm) or 10” (290mm) round cut out.
Designed to fit our range of 8” & 10” Rapid Response grilles.
Suitable for 150mm ducting.
Model No.
RESP200DCON
RESP250DCON

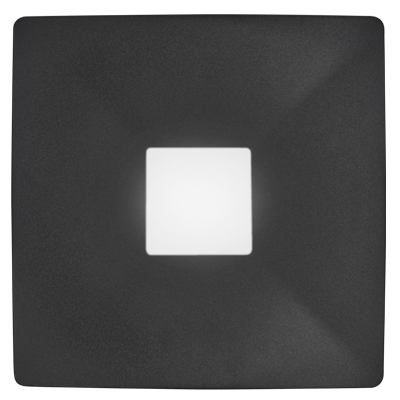

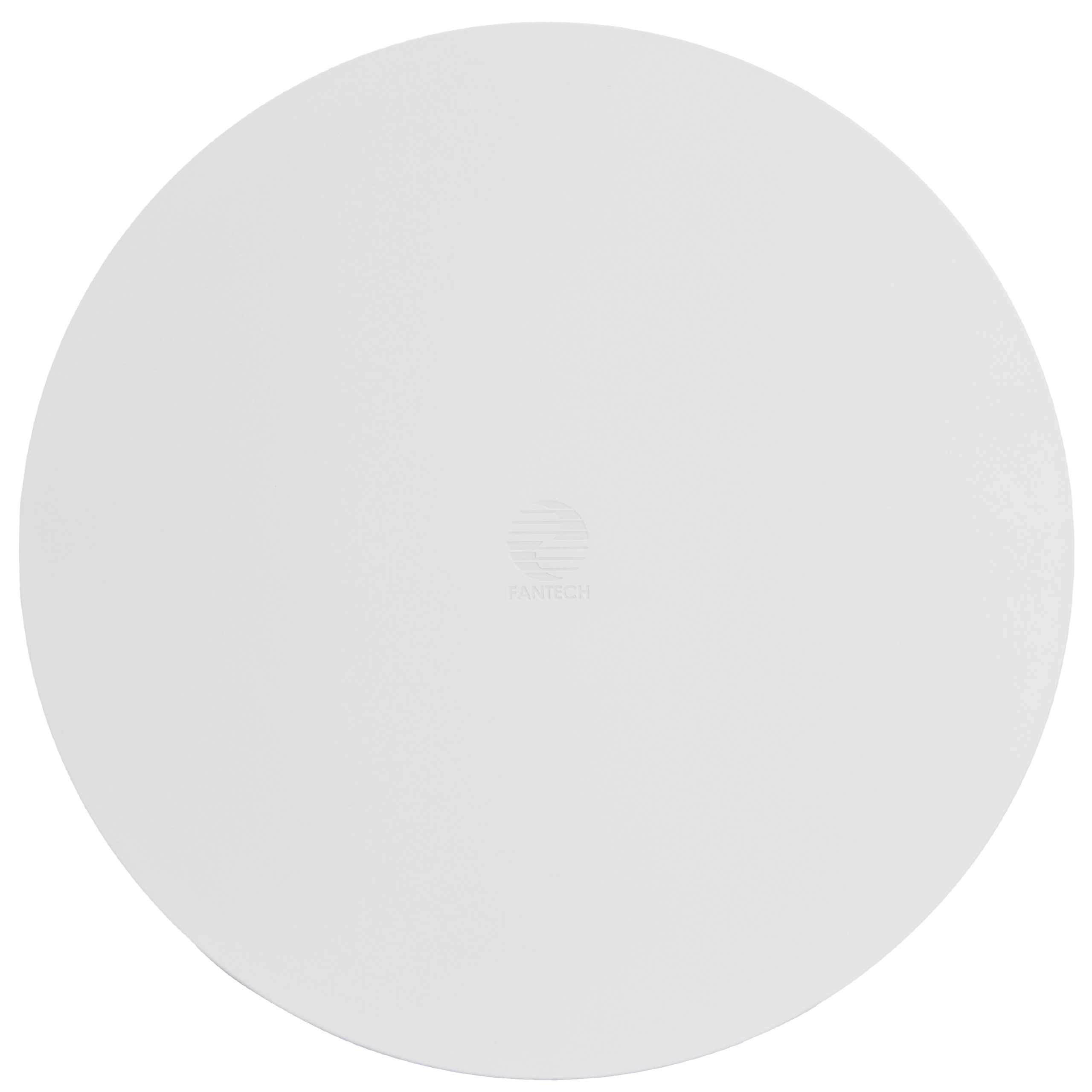

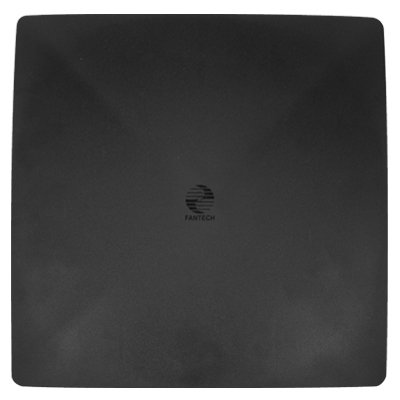

Compatible Rapid Response Grilles
Installation
Grille to Duct Connector

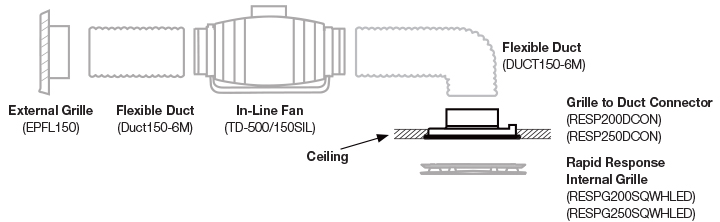

Typical In-Line Installation
1. Rotate swing clips to hold grille to duct connector in place.
2. Tighten screws so clips clamp onto ceiling board.

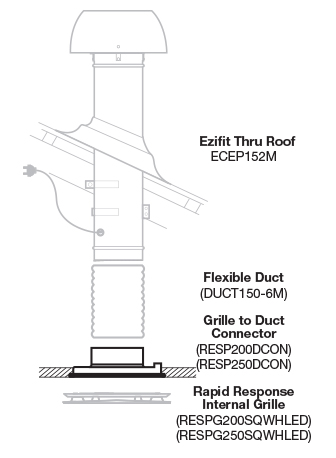

EziFit Thru Roof

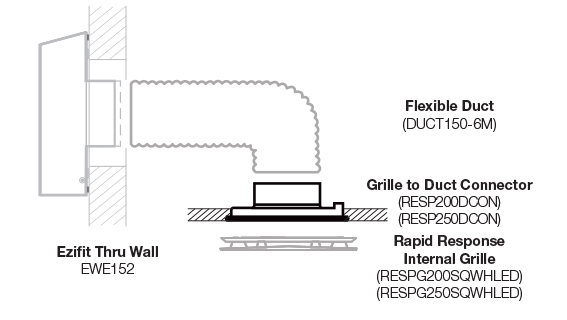

EziFit Thru Wall
Dimensions
RESP200DCON
Suits 200 Series (8″) Rapid Response Grilles
All dimensions in mm

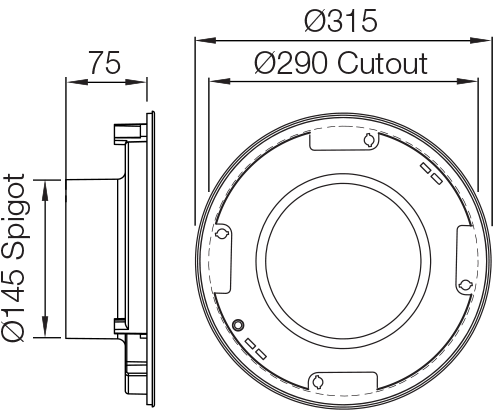

RESP250DCON
Suits 250 Series (10″) Rapid Response Grilles
All dimensions in mm
