RAPID RESPONSE 250HP
DUCTED CEILING EXHAUST FAN
*Conditions apply. For details, click here
**Compliant with requirements of NCC 2022 Vol 1 Part F8D4 and ABCB Housing Provision Part 10.8.2, when correctly installed.
Rapid Response 250HP
The Rapid Response 250HP series header box exhaust fan is one of the quietest and most powerful in its class. Its aerodynamic and fully optimised design minimises air flow resistance and produces powerful, efficient performance.
Features
Rapid Response 250HP provides strong air flow performance to ensure steam and odours are cleared from rooms such as bathrooms and ensuites.
High strength swing clips and removable spigot makes installation easy.
Advanced impeller and housing design provides powerful air flow and minimises noise.
Can be retrofitted into an existing standard 250mm round fan cut out.
Low resistance non-return backdraft damper maximises air flow performance.
Matching grilles are easy to remove, which makes cleaning easy.
Includes high quality sealed for life ball bearings.

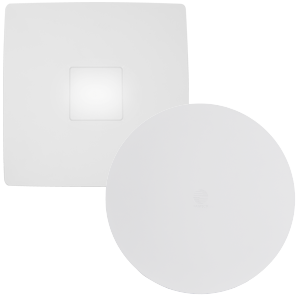

Modern square or round grilles available (Click here). Square grilles can be easily rotated to align with walls.
Available with 3-15 minute NCC2022 compliant** adjustable run-on timer (RESPF250HPROT).
Rated “Continuous Run”.
Includes plug and lead for easy installation.
Standard model (RESPF250HP) includes a 3-pin plug and lead to suit HPM 37CL, or Clipsal 413-WE bases (with 3-pin sockets).
Timer model (RESPF250HPROT) includes a 4-pin plug and lead to suit HPM 33, or Clipsal 413/4P-WE bases (with 4-pin sockets).

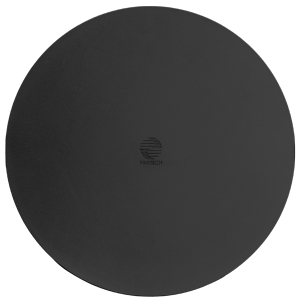

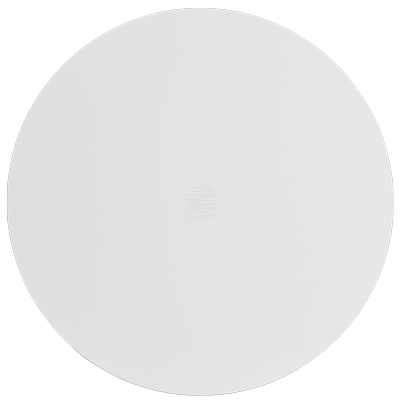

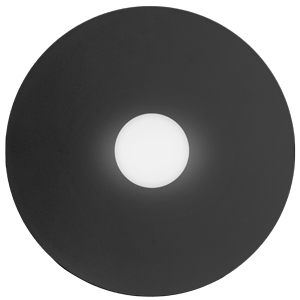

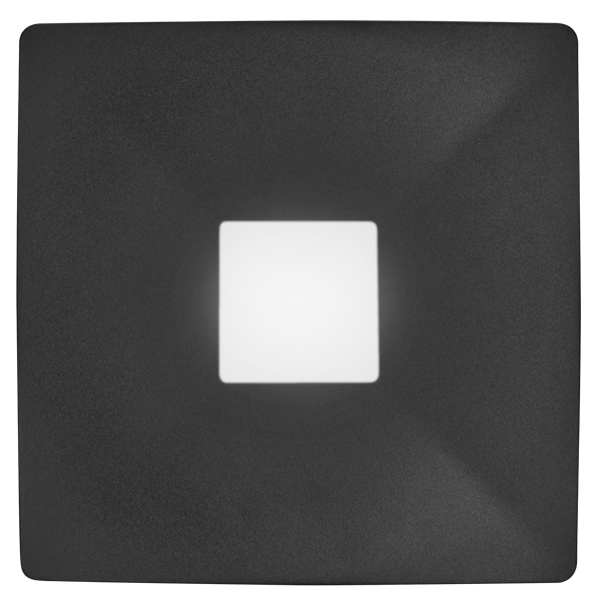

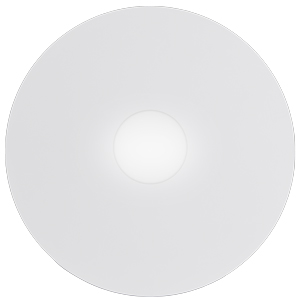

Compatible Grilles
Dimensions
RESPF250HP comes with spigot to suit 150mm duct. All dimensions in mm.
Technical Data
| Model No. (Current Code) | (Old Code) | Description | Air Flow m³/hr† | Air flow L/sec† | Fan Speed rpm | AVG. dB(A) @ 3m | Watts | Volts | Run on Timer |
|---|---|---|---|---|---|---|---|---|---|
| RESPF250HP | RESPF150 | Fan body | 364 | 97 | 950 | 37 | 60 | 230-240 | No |
| RESPF250HPROT | RESPF150T | Fan body with run-on timer | Yes |
SPECIAL NOTE
Timer model RESPF250ROT includes a 4-plug and lead to suit HPM 33, or Clipsal 413/4P-WE bases (with 4-pin sockets).
Replacement Parts
| Model No. | Description |
|---|---|
| RESPF250SPIG150 | 150mm removable spigot |
Installation
1. Rotate swing clips to hold fan body in place.
2. Tighten screws so clips clamp onto ceiling board.
Long clip-in spigot makes installation & duct connection easier.
