RAPID RESPONSE 250
DUCTED CEILING EXHAUST FAN WITH GRILLE
*Conditions apply. For details visit: fantechtrade.com.au/warranty
**Compliant with requirements of NCC 2022 Vol 1 Part F8D4 and ABCB Housing Provision Part 10.8.2, when correctly installed.
Rapid Response 250

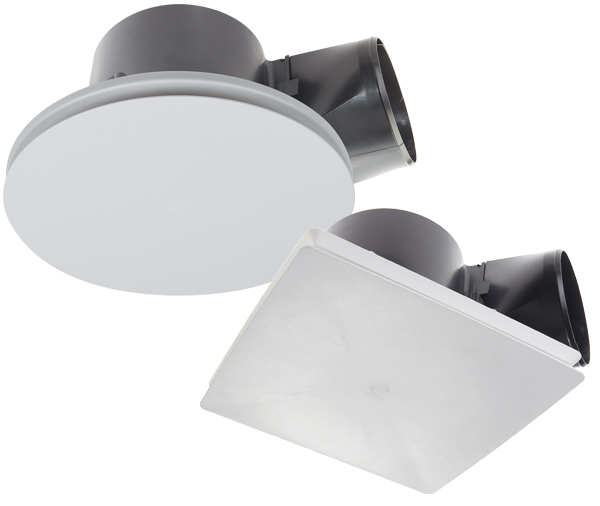

The Rapid Response 250 series ceiling mounted header box fan comes with either a round or square grille. It features quiet operation, powerful air flow performance and a modern sleek look. It includes a fully optimised inlet cone and centrifugal impeller that maximises air pressure and ensures rooms are quickly cleared of steam and unpleasant odours. It includes high strength swing clips and a removable spigot that makes it very easy to install into a standard 250mm round fan cut out.
Features
Advanced impeller and housing design provides powerful air flow and minimises noise.
Available with a modern square or round grille.
Low resistance non-return backdraft damper maximises air flow performance.
Can be retrofitted into a standard 250mm round fan cut out.
Fitted plug and lead simplifies installation.
Run-on timer models feature an NCC2022 compliant** 3-15 minute adjustable run-on timer.
Includes high quality sealed for life ball bearings.
Includes plug and lead for easy installation.
Standard models include a 3-pin plug and lead to suit HPM 37CL, or Clipsal 413-WE bases (with 3-pin sockets).
Timer models include a 4-pin plug and lead to suit HPM 33, or Clipsal 413/4P-WE bases (with 4-pin sockets).
Dimensions
RESPFG250 comes with spigot to suit 150mm duct. All dimensions in mm.
Technical Data
| Model No. (Current) | (Old Code) | Description | Air flow m³/h† | Air flow L/sec† | AVG. dB(A) @ 3m | Watts | Volts | Hertz |
|---|---|---|---|---|---|---|---|---|
| RESPFG250RNWH | RESPFG10RN | Fan body with round grille | 288 | 80 | 38 | 40 | 230-240 | 50 |
| RESPFG250RNWHROT | - | Fan body with round grille and run-on timer | 288 | 80 | 38 | 40 | 230-240 | 50 |
| RESPFG250SQWH | RESPFG10SQ | Fan body with square grille | 288 | 80 | 38 | 40 | 230-240 | 50 |
| RESPFG250SQWHROT | - | Fan body with square grille and run-on timer | 288 | 80 | 38 | 40 | 230-240 | 50 |
Replacement Parts
| Model No. | Description |
|---|---|
| RESPF250SPIG150 | 150mm removable spigot |
| RESPF250SQWH | Rapid Response Square Grille |
| RESPF250RNWH | Rapid Response Round Grille |
