FAN CONTROLLERS AND RUN-ON TIMERS
Power Sense Switch
Provides automatic on/off control of a fan from an appliance when current is detected, ie: clothes dryer, range hood booster fan. LED lights indicate when load is activated.
220-240V, single phase, 50Hz.
| Part No | Load Sense On | Load Sense Off | Max. Fan Output | Dimensions (W x H x D) mm |
|---|---|---|---|---|
| VZ-ISNSE | 2.0A to 15A | 1.5A | 5A | 153 × 110 × 60 |
| VZ-ISNSE-LC | 0.5A to 2.0A | 0.35A | 5A | 153 × 110 × 60 |

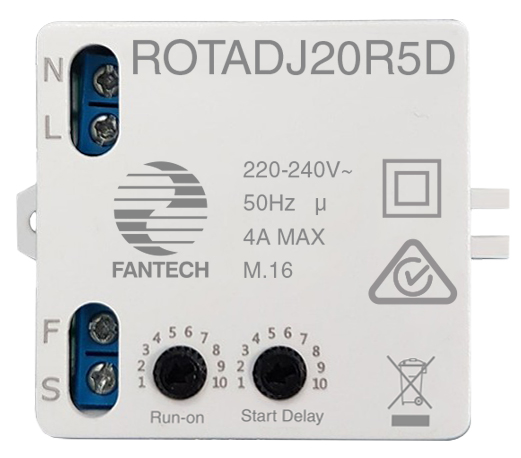

Run-on timer – Direct wired
220-240V, single-phase, 50Hz. Designed to permit the supply of electricity to motors so they can continue to operate for a predetermined time.
Can be mounted within equipment or enclosure. Size: 32W x 13H x 17D
| Part No. | Start Delay | Run-on Timer | Max Amps | To suit fans : | |
|---|---|---|---|---|---|
| VZ24C | Up to 150 sec | Up to 24min (1.5 min increments) | 0.075A -1.25A | • DOM Series • Silent Design • Silent • HCM • Stylvent • ProVent | • Rapid Response • Ezifit In-Wall • Ezifit Thru Roof • Vogue/Ring Plate |
| VZ6 | 50 sec | 6 min Fixed | 0.075A -1.25A |
||
| VZ12 | 50 sec | 12 min Fixed | 0.075A -1.25A |
||
Run-on timer – Direct wired supply with plug-in outlet. Single switch input
220-240V, single-phase, 50Hz. Fan with 3 pin plug and lead connects directly.
Mains connection is wired directly into the terminals of the run-on timer; no need for 4-pin GPO.
| Part No. | Run-on Timer | Max. Amps | To Suit Fan Selected | |
|---|---|---|---|---|
| VZ2-10TS | 2-10 min | 5.0 | • DOM Series • Silent Design • Silent • HCM • Stylvent • ProVent | • Rapid Response • Ezifit Thru Wall • Ezifit In-Wall • Ezifit Thru Roof • Vogue/Ring Plate |
Run-on timer – 4-pin plug supply with plug-in outlet
220-240V, single-phase, 50Hz. Fan with 3 pin plug and lead connects directly.
Fitted with 4 pin plug and 900mm lead for connection to 4 pin GPO.
| Part No. | Run-on time | Max. Amps | To Suit Fan Selected | |
|---|---|---|---|---|
| VZ6-4PL | 6 min | 5.0 | • Vogue/RingPlate • Ezifit Thru Wall • Ezifit Thru Roof | • TD Silent • Rapid Response • ProVent |
Speed controller – 3-pin plug supply with plug-in outlet
220-240V, single-phase, 50Hz. Fan with 3 pin plug and lead connects directly.
Fitted with 4 pin plug and 900mm lead for connection to 3-pin GPO.
| Part No. | Max. Amps | To Suit Fan Selected | |
|---|---|---|---|
| VA1.5-3PL | 1.5 | • Vogue/RingPlate • Ezifit Thru Wall • Ezifit Thru Roof | • TD Silent • Rapid Response • ProVent |
Variable Speed Controller
A stepless speed controller for single phase AC external rotor motors.
A potentiometer may be used in lieu of input signals to provide manual control when in 0-10V control. Rated at 240V, 3 Amp, suitable for 50/60 Hz 600VA up to 55°C.
| Part No. | Input Signal | Dimensions (W x H x D) mm | Amps | To Suit Fan Selected |
|---|---|---|---|---|
| AVA3.0 | 0-10V or 2-20mA is selected via an internal jumper. | 110 × 40 × 50 | 3.0 | When used to control a number of identical fans the sum of the full load amps of all the connected fans must not exceed 85% of the maximum rating of the controller. The fans should be identical. |
| AVA3.0-IP55 | 165 ×142 × 84 | 3.0 |
Fan Control Thermostat
220-240V, single-phase, 50/60 Hz. The Fan Control Thermostat has been developed to control the operation of a 240-volt fan, based on the setting made on the thermostat dial. It can be set to turn on a fan when the room temperature either goes higher or lower than the dial setting.
| Part No. | Temp. Range | Max. Amps | To Suit Fan Selected |
|---|---|---|---|
| TFC6 | 5°-30° | 6.0 | • Ideal for Heat Transfer Fan Kits • Suitable for most 240V fans. |
Speed Controller/Switch
Wall mounted Fan Speed Controller with on/off switch. Provides infinite variation of fan speed from 100% down to approximately 30% of full speed. 240V, single phase, 50Hz.
| Part No. | Max. Amps | LED power light | To Suit Fan Selected |
|---|---|---|---|
| VA2.0 | 2.0 | No | When used to control a number of identical fans the sum of the full load amps of all the connected fans must not exceed 85% of the maximum rating of the controller. The fans must be wired in parallel. |
| VA2.8 | 2.8 | Yes | |
| VA5.0 | 5.0 | No | |
| VA8.0 | 8.0 | Yes | |
| VA2.0POT** | 2.0 | No |
** The VA2.0POT unit is designed to be mounted within equipment or enclosures.
3-Speed Switch
240V, single-phase, 50Hz. Wall mounted 3-speed switch that has been specifically designed for the Ezifit In-Wall Exhaust Fan to change between high, medium and low speed. Has an IP30 enclosure rating. A recess depth of 25mm is required for mounting.
| Part No. | To Suit Fan Selected |
|---|---|
| DSS1-16 | Ezifit In-Wall models |
Reversing Switch
240V, single-phase, 50Hz. Wall-mounted Reversing Switch with an IP30 enclosure rating. A recess depth of 25mm is required for mounting.
Enables the Stylvent fans to operate in both supply and exhaust modes.
| Part No. | To Suit Fan Selected |
|---|---|
| SRS | Stylvent. HV-230AE and HV300AE only |
